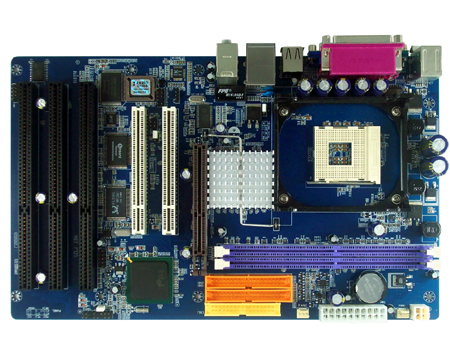

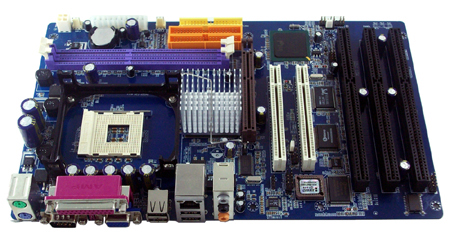

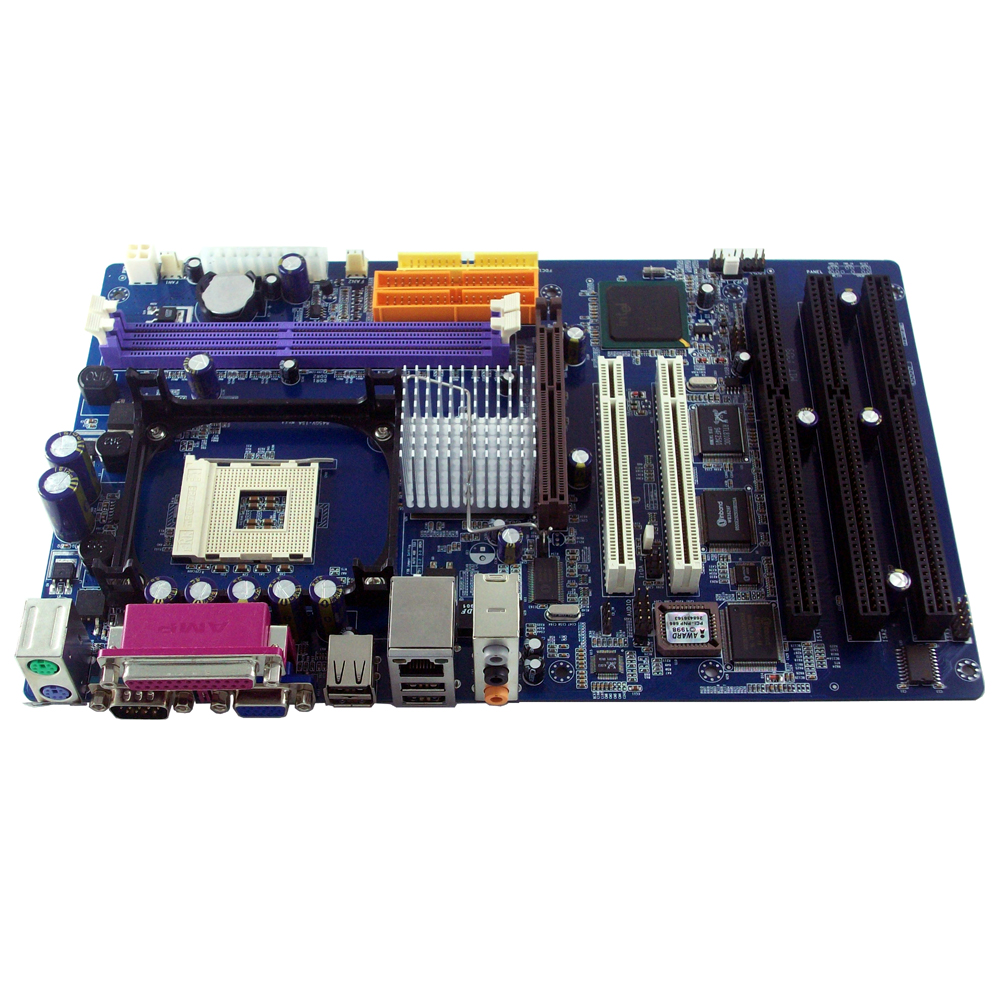

Motherboard ISA Slots
Model: 845GV-3ISA
Profile :
Intel® 845GV Socket 478 FSB 533mhz motherboard,ATX industrial motherboard / mainboard ISA bus for ISA computer / server
Chipset: Intel® 845GV+ ICH*4,Support Celeron 4 /Pentium 4 CPU
with 3*ISA,2*PCI,2*COM (2 x RS-232),Onboard VGA,SOUND,LAN
Support DDR 266/333 DIMM max up to 2GB
SIZE:ATX,293mm * 180mm
Motherboard ISA 845GV
Datasheet:
CPU: Socket 478 for Celeron® 4 /Pentiun®4 ,
FSB 533
Memory: 2 x 184-pin DDR 266/333 DIMM max.up to 2GB
Chipset: Intel® 845GV+ ICH*4
BIOS: Award BIOS with 4Mbit Flash ROM
Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
Expansion Interface:
2*PCI expansion slot,
1*AGP 4/8X,
1*ISA
Motherboard ISA 845GV
MIO: "2 x ATA-100 IDE, 1 x FDD, 1 x PS/2 K/B, 1 x PS/2 MS, 1 x COM (1 x RS-232), 1 x LPT, 1 x RJ-45"
Ethernet: Realtek RTL8100C Fast Ethernet controllers
Audio: Realtek ALC655 AC'97 Codec Audio
USB: 6 x USB 2.0 ports (2 ports form 1 header)
Memory Size: Max.up to 64MB frame buffer sharing system memory
Output Interface: VGA port
Size: ATX
255 x 180 mm
845 , 845GV-3ISA Motherboard ISA Slots
