Asterisk PCIE Card

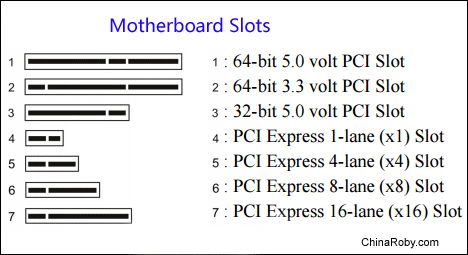

-The Asterisk pcie card is with PCI Express ( PCI-E) connector .
-The Asterisk pcie card AEX410 is a half-length PCI 2.2-compliant card that supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It's a PCI-E Card for Asterisk,FreePBX,Issabel,Free PBX and other Open Source Telephony projects with 4 modules.
-The asterisk pcie card is fully compatible with all similar analog cards and modules with no changes to the drivers,supports Dahdi and Zaptel.

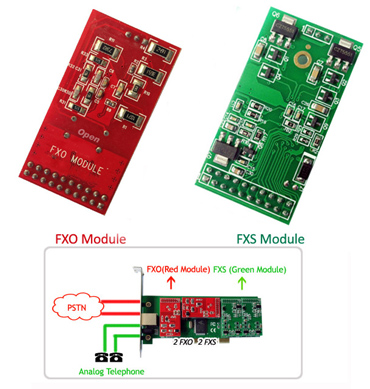

-FXO modules are used to plug existing analog telephone lines into your phone system.
With the Asterisk card AEX410, Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
- Caller ID and Call waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector

Modules
Motherboard: AEX410
FXO module: 0 pcs
FXS module: 4 pcs
Hardware Requirement
500-Mhz Pentium III or better with 64MB RAM

asterisk pcie card

asterisk pcie card

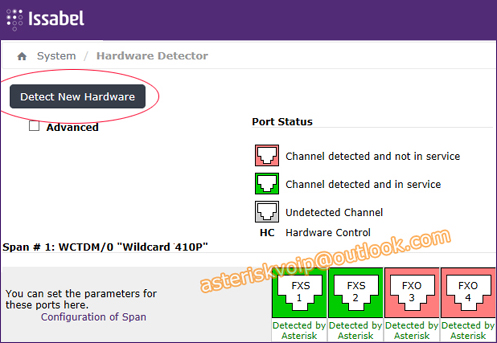

- Issabel / FreePBX / Free PBX Settings (2FXO+2FXS):

[ChinaRoby.localdomain ~]# dahdi_genconf
[ChinaRoby.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
[ChinaRoby.localdomain ~]# asterisk -vvr
ChinaRoby*CLI> dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default en default In Service
1 from -pstn en default In Service
2 from-pstn en default In Service
3 from-internal en default In Service
4 from-internal en default In Service

	OEM services
		Label, Sticker
		Logo silk screen printing
		Customized gift box
		Re-designing PCB

See also

Model No.	Motherboard	FXO module (pcs)	FXS module (pcs)	Picture

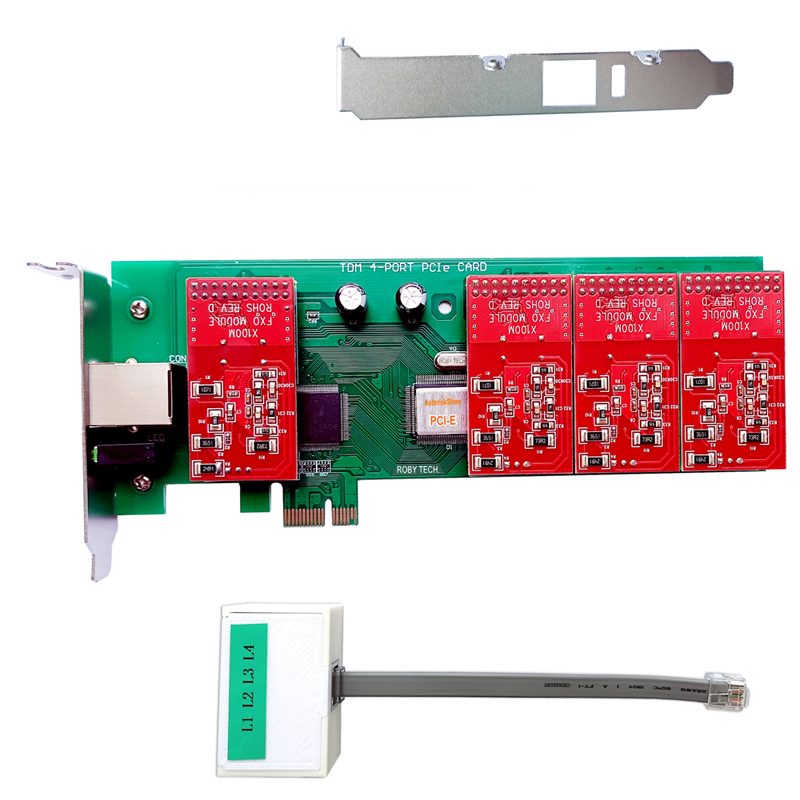

AEX410-40	AEX410	4	0

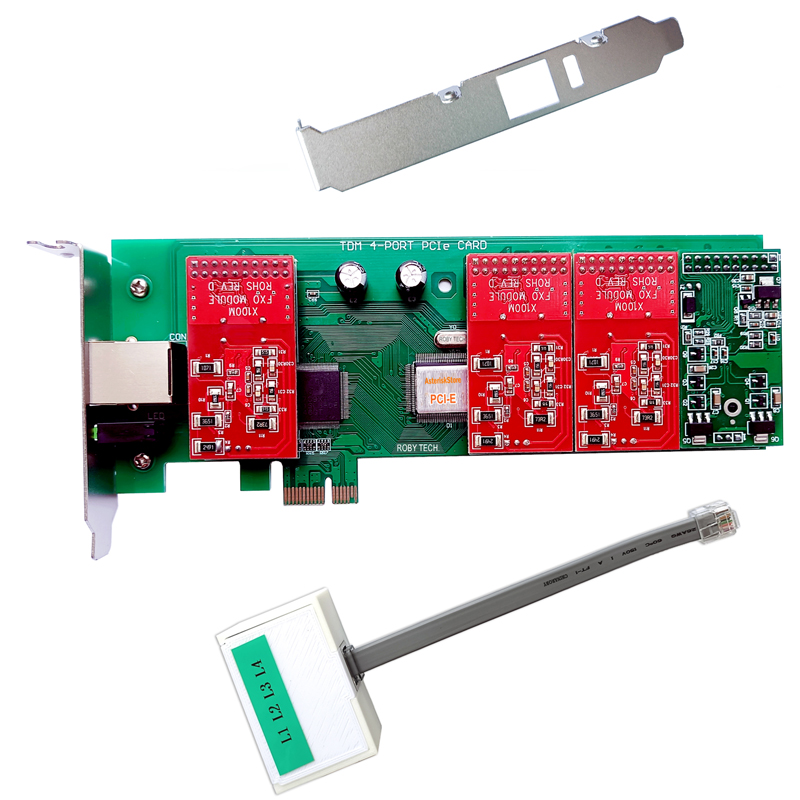

AEX410-31	AEX410	3	1

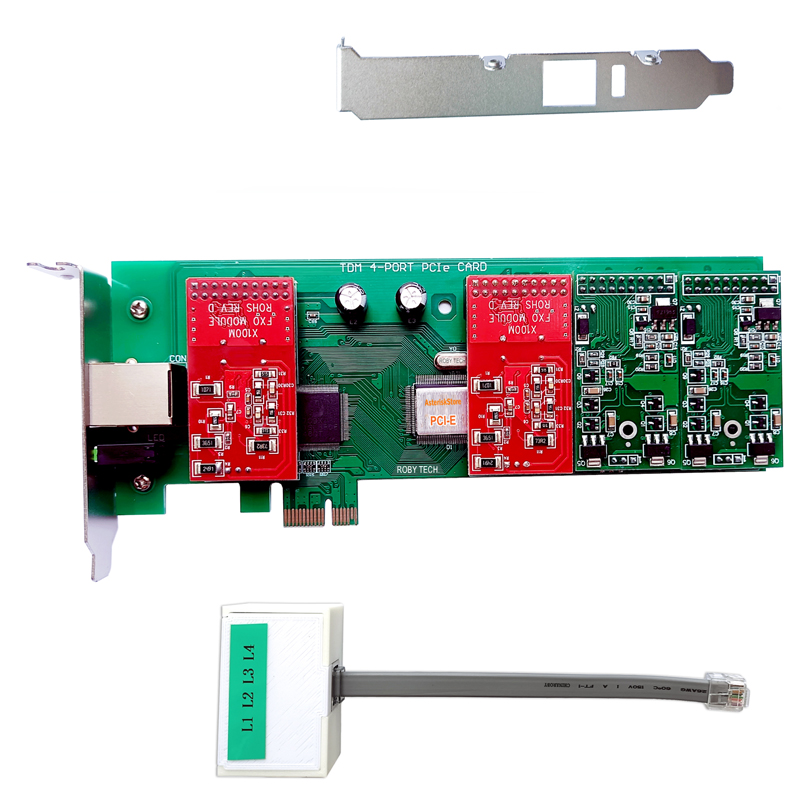

AEX410-22	AEX410	2	2
AEX410-13	AEX410	1	3
AEX410-04	AEX410	0	4

Related Products

FXS FXO Cards
Model No.	Connector	Size	FXO FXS Ports	Buy
X100P	PCI	2U / 4U	1
X400P	PCI	4U	4
X410P	PCI	4U	4
AEX410	PCI-E	4U	4
TDM800P	PCI	4U	8
AEX800	PCI-E	4U	8

..

....

..
